CompuLoad 4060
Rugged Mobile Printer

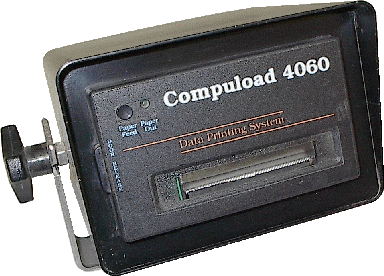

Compuload 4060 Printer suitable for System 3000 and System 4000
  • Built in Australia
  • Rugged and Reliable
  • Uses standard thermal calculator paper
  • Prints Two Line user Company Heading
  • Prints individual lifted weight
  • Prints progressive total weight
  • Prints date and time
  • Prints product Details*
  • Prints customer Details
  • Prints truck Details*
  • * Summary printouts allow for all loads to be printed as required.
  • * When used in conjunction with the Compuload 4000 load weighing system.

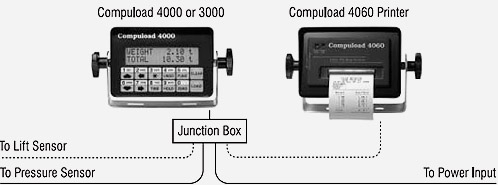

4060 Printer Diagram
Versatile Printing
The Compuload 4050 printer is supplied as an add on module to suit both the Compuload 3000 and Compuload 4000 series. This compact serial dot matrix printer allows for all weighing data to be printed together with any stored information. All information is recorded onto standard calculator paper and includes:
  • Two Line Company heading
  • Individual lifted weight
  • Progressive total weight
  • Date and Time
  • Product details
  • Customer details
  • Truck details
Summary printouts allow for separate totals or any field to be printed, if used in conjunction with the Compuload 4000
Specifications


PRINTER Thermal line head system
ENCLOSURE Powder coated Stainless Steel
PAPER WIDTH 58mm +/- 1mm
PAPER  OD 50mm
CORE SIZE 12mm
PRINT WIDTH 48 mm
COLUMNS Set at 24 columns
PRINT SPEED 10 lines per second (with CTS)
CONTROLS Paper feed and Paper out LED
MOUNTING Stainless Steel bracket
PAPER LOADING Automatic
DIMENSIONS 140mm (w) x 95mm (h) X 125 – 160 (d)


WEIGHT 1700gms (Unpacked)
POWER SUPPLY 12 / 24 Volts
MAX CURRENT  4 Amps
OPTIONS 48 Volt Power reducer
