CompuLoad Velocity and Position Sensor Installation
(Typical)
Kawasaki 86 Loader
Documents:
CompuLoad Speed Sensor Install
(pdf 1.514mb)
Drawings:
Sensor Guard
Sensor Mount Bracket
Magnet Bracket
Magnet Holder

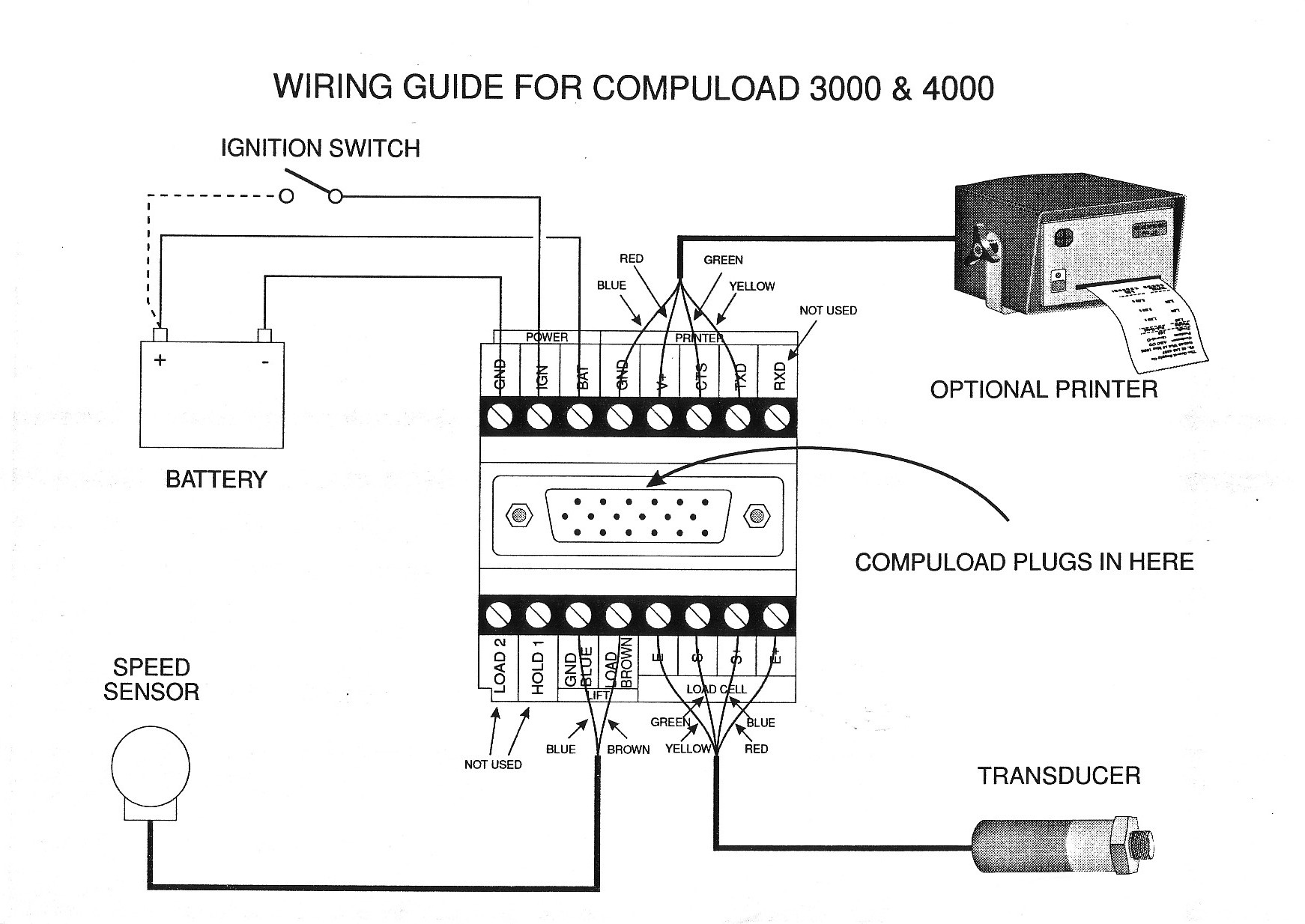

J-Box wiring
Speed Sensor Installation
Speed Sensor Operation
Videos:
CL4000 Overview
CL4000 Install and Calibration
CL4000 Operation
Here are some photos of an installation on a Kawasaki 85.
Also the hydraulic adaptor used is a Code 61 3/4" flange adaptor. We used 3.2 metres of hose.

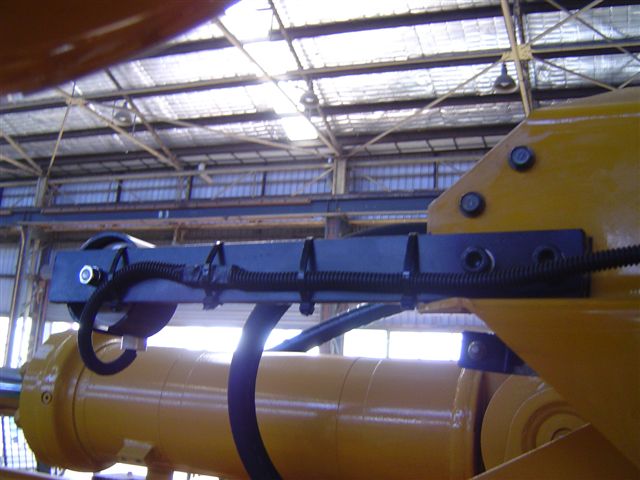

Sensor Arm

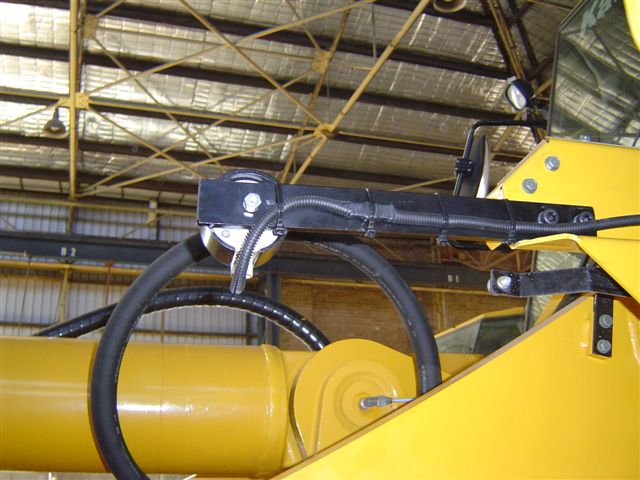

Sensor Arm

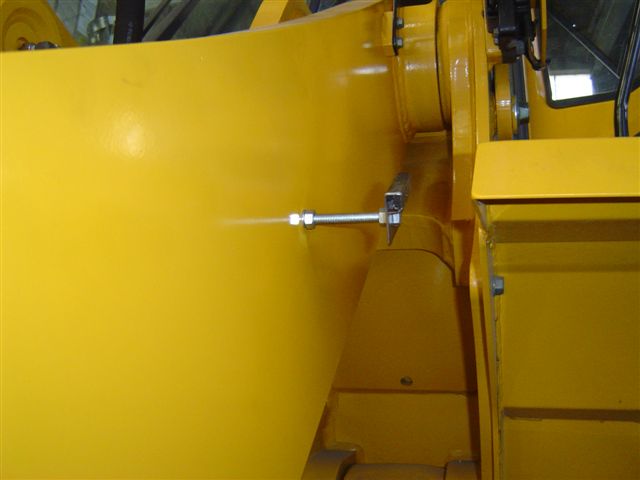

Magnet Mount

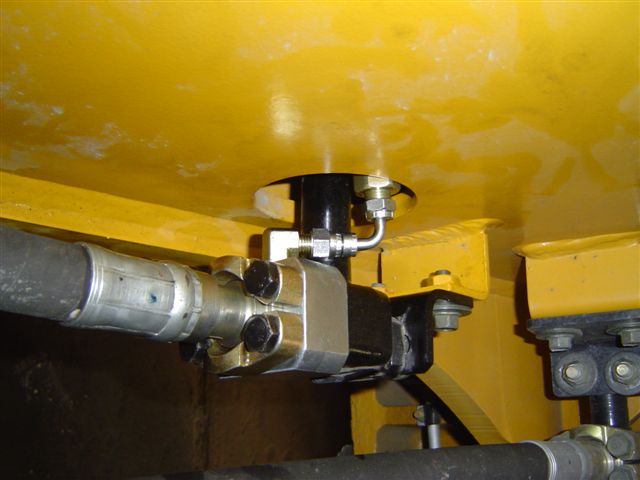

Ported Line to Transducer

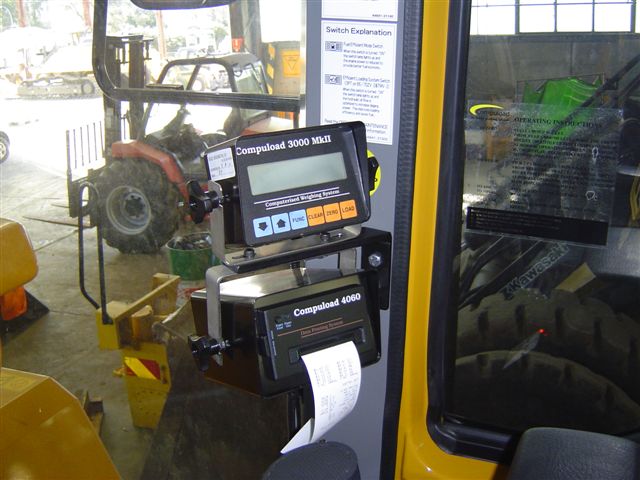

Indicator/Printer Installation

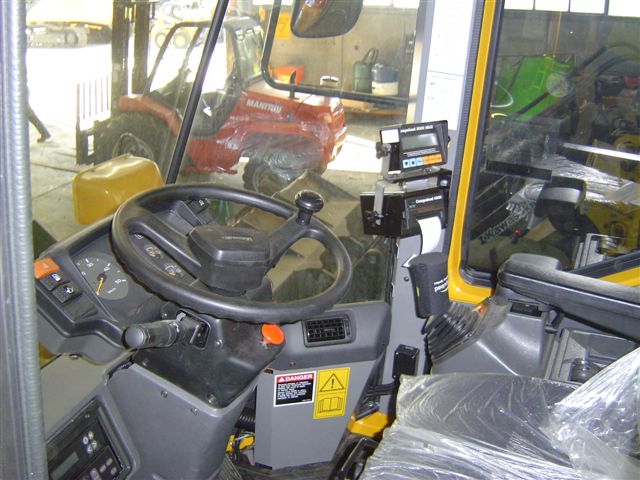

Cockpit View
CompuLoad Scales
